Improvement of thermal performance of an indirect flat plate solar collector in solar water heater applications

Authors

DOI:

https://doi.org/10.15587/1729-4061.2026.358842

Keywords:

solar collector, water tank, indirect system, power plant, water heater

Abstract

The object in this study is the process of heat transfer, energy conversion, and heat distribution through solar collectors in indirect systems. The problem to be solved is to develop sustainable alternatives powered by renewable energy sources, such as solar energy

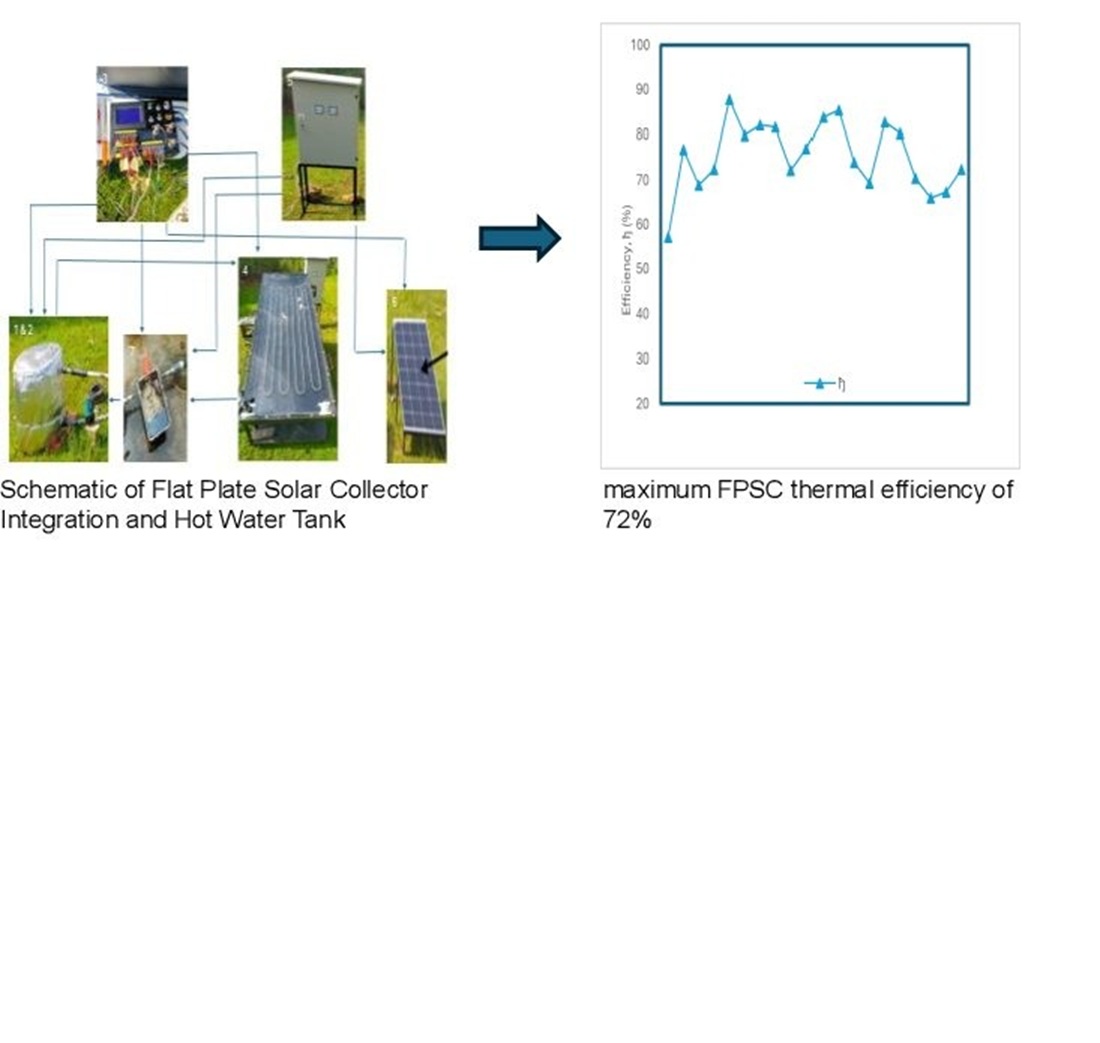

This study is focused on the research of a solar water heater (SWH) system incorporating flat plate solar collectors (FPSC). The system enhances the thermal performance of the FPSC through an indirect, closed-loop configuration. Water from the hot water tank (HWT) is circulated through the FPSC copper pipes by a pump powered by a Solar Power Plant, ensuring continuous heat transfer and efficient thermal performance. The system operates at a flow rate of 0.116 kg/s. A K-type thermocouple connected to a data logger records the water temperatures at the HWT’s inlet and outlet every 30 seconds. In addition to the system, the features of this study also focuses on phase change material (PCM) which uses mannitol material as thermal energy storage (TES) which will be used during cloudy or rainy weather. All equipment such as plunger pumps, heaters for PCM use solar electricity. The feature of this study also uses the Internet of Things (IoT) to find out the temperature in the solar water heater tank. The test results indicate a maximum FPSC thermal efficiency of 72% and a coefficient of performance (COP) of 10 under a pump power of 100 W and an absorbed heat input of 1000 W. The average solar irradiance ranged from 850 to 950 W/m2. These results demonstrate the potential of this technology to efficiently meet domestic hot-water demand and its suitability for deployment in tropical regions.

Author Biographies

Mochamad Sugiri, Universitas Pancasila

Doctor Candidate of Mechanical Engineering, Assistant Professor

Department of Mechanical Engineering

Budhi Muliawan Suyitno, Universitas Pancasila

Doctor of Mechanical Engineering, Professor

Department of Railway Engineering

Erlanda Augupta Pane, Universitas Pancasila

Master of Mechanical Engineering, Assistant Professor

Department of Mechanical Engineering

Gunadi Haryanto, Universitas Pancasila

Master of Electrical Engineering, Assistant Professor

Department of Electrical Engineering

Ismail Ismail, Universitas Pancasila

Doctor of Mechanical Engineering, Professor

Department of Mechanical Engineering

References

  1. Syahbana, M. S. L., Kurniawan, Y., Ismail, I. (2024). Experimental Study on the Effect of Different HTF Discharges to Increase Efficiency of a Latent Heat Storage System Using a Spiral Coil Heat Exchanger with Different Fins. International Journal of Thermophysics, 45 (6). https://doi.org/10.1007/s10765-024-03373-9
  2. Waluyo, J., Dhewangga Putra, R. D., Chandra Adhitya, D., Rahman, R. A. (2025). Parametric operational analysis of hybrid thermo-electric/fluid-active thermal storage for domestic water heating system. Solar Energy Materials and Solar Cells, 286, 113575. https://doi.org/10.1016/j.solmat.2025.113575
  3. Gunjo, D. G., Mahanta, P., Robi, P. S. (2017). CFD and experimental investigation of flat plate solar water heating system under steady state condition. Renewable Energy, 106, 24–36. https://doi.org/10.1016/j.renene.2016.12.041
  4. Salman, B., Sanaa Hassan Obaid. (2025). Enhanced Performance of Flat Plate Solar Collector with Twisted Tape Double Cutting Rectangle Shape. Journal of Engineering and Sustainable Development, 29 (1), 68–78. https://doi.org/10.31272/jeasd.3128
  5. Pambudi, N. A., Nanda, I. R., Putri, A. E., Salsala, R. N., Aziz, M., Rudiyanto, B., Wiyono, A. (2024). An experimental investigation of various trickle collector structures to enhance solar water heater efficiency. Cleaner Engineering and Technology, 21, 100789. https://doi.org/10.1016/j.clet.2024.100789
  6. Naveenkumar, R., Venkateshkumar, R., Mohanavel, V., Franklin, C., Ismail, S. O., Ravichandran, M. et al. (2025). Recent developments in solar water heaters and solar collectors: A review on experimental and neural network analyses. Results in Engineering, 25, 104394. https://doi.org/10.1016/j.rineng.2025.104394
  7. Alwan, N. T., Majeed, M. H., Khudhur, I. M., Shcheklein, S. E., Ali, O. M., Yaqoob, S. J., Alayi, R. (2022). Assessment of the performance of solar water heater: an experimental and theoretical investigation. International Journal of Low-Carbon Technologies, 17, 528–539. https://doi.org/10.1093/ijlct/ctac032
  8. Dhairiyasamy, R., Rajendran, S., Khan, S. A., Aziz Alahmadi, A., Alwetaishi, M., Ağbulut, Ü. (2024). Enhancing thermal efficiency in flat plate solar collectors through internal barrier optimization. Thermal Science and Engineering Progress, 54, 102856. https://doi.org/10.1016/j.tsep.2024.102856
  9. Amirgaliyev, Y., Kunelbayev, M., Kalizhanova, A., Amirgaliyev, B., Kozbakova, A., Auelbekov, O., Kataev, N. (2019). Study of convective heat transfer in flat plate solar collectors. ITM Web of Conferences, 24, 1009. https://doi.org/10.1051/itmconf/20192401009
  10. Lin, X., Xia, Y., Cheng, Z., Liu, X., Fu, Y., Li, L., Zhou, W. (2024). Thermal Performance Analysis of Porous Foam-Assisted Flat-Plate Solar Collectors with Nanofluids. Sustainability, 16 (2), 693. https://doi.org/10.3390/su16020693
  11. Rashid, F. L., Al-Obaidi, M. A., Aljibori, H. S., Mohammed, H. I., Mahdi, A. J., Al-Rubaye, A. H. et al. (2025). Recent advancement in hybrid nanofluids used in flat plate solar collectors and future prospects. Ministry of Science and Technology, Vietnam, 67 (1). https://doi.org/10.31276/vjste.2024.0065
  12. Abduljleel, M. A., Yasin, N. J., Ghadhban, S. A., Soomro, S. A. (2024). Performance Improving for the Flat Plate Solar Collectors by Using Nanofluids: Review Study. Journal of Techniques, 6 (1), 52–68. https://doi.org/10.51173/jt.v6i1.1891
  13. Taupek, M. M. M., Awang, M., Ruddin, N. M. B., Hamidon, N., Ahmad, F., Lukiyanto, K. (2025). Performance Evaluation of Energy Collection Using Various Solar Flat Plate Collectors. International Journal of Research and Innovation in Social Science, IX (I), 4209–4220. https://doi.org/10.47772/ijriss.2025.9010328
  14. Kadam, T. V., Pakhare, S. Y., Godse, A. B. (2025). Performance analysis of solar thermal collectors: A comprehensive review. Measurement: Energy, 7, 100059. https://doi.org/10.1016/j.meaene.2025.100059
  15. Suyitno, B. M., Ismail, Rahman, R. A. (2023). Improving the performance of a small-scale cascade latent heat storage system by using gradual melting temperature storage tank. Case Studies in Thermal Engineering, 45, 103034. https://doi.org/10.1016/j.csite.2023.103034
  16. Chekerovska, M., Filkoski, R. (2015). Efficiency of liquid flat-plate solar energy collector with solar tracking system. Thermal Science, 19 (5), 1673–1684. https://doi.org/10.2298/tsci150427099c
  17. Anshori Hasibuan, A. I., Nurdin, R., Ismail, I., Rahman, R. A. (2025). Experimental evaluation of hybrid electric-heat operation for reliable residential water heating technology using photo-thermal system. Journal of Thermal Engineering, 11 (6), 1717–1728. https://doi.org/10.14744/thermal.0001027
